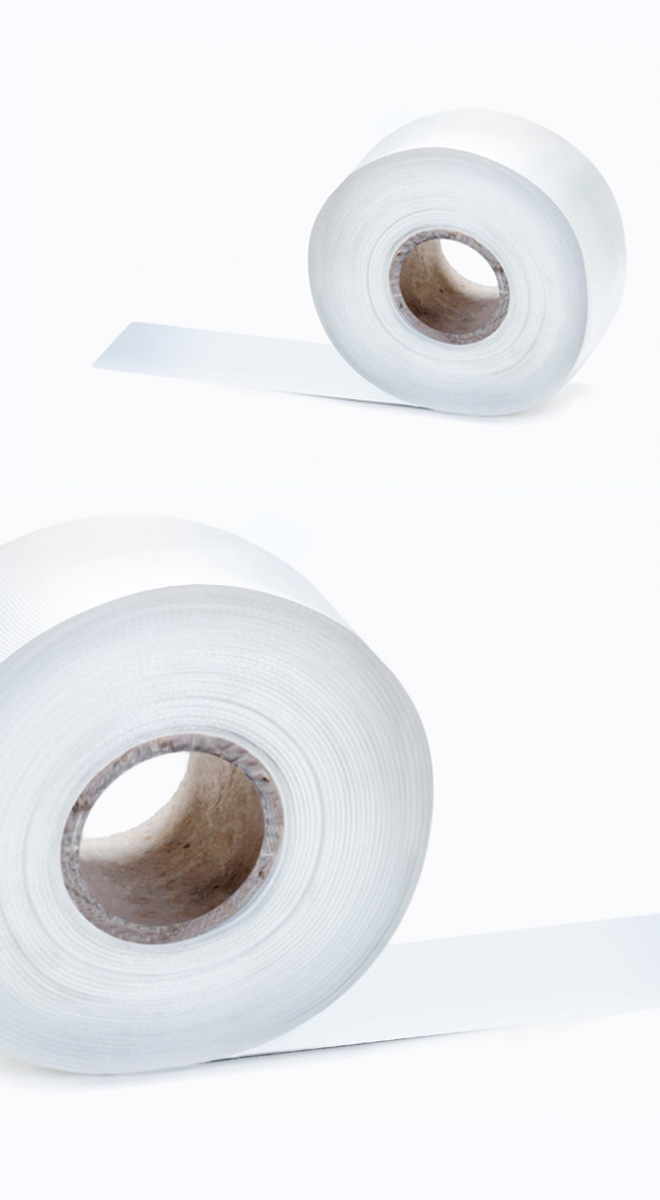

Eicon HP

EICON HP -30, -50
-60 & -75

APPLICATION
EICON consists of several layers of robust fiberglass stitched together using fiberglass thread.

CHARACTERISTICS
This product creates an air channel and can withstand pressures up to 200 psi (14 Bar) and temperatures as high as 900°F (482°C) without compressing.

IMPORTANT
Other sizes and ply layers available on request.

NOMENCLATURE
An example of products nomenclature is hereby reported:

Name EICON HP - 30 Width in mm

Details	U.M./tol	Spec.	Value
Yarn used	-	-	Fiber Glass type E
Thermal class	-	-	250
Thickness	mm / -0,01 +0,03	-	0,18
Length	lm	-	50
Ø elementary glass yarn	μ	-	9
Warp threads	Threads per cm	-	20 min.
Weft threads	Threads per cm	-	20 min.
Weight	gr. per m/cm width	-	2.30 min.
Breaking strenght	N/cm width	-	280 min.
Elongation	%	-	3
Weave	-	-	Plain
Widths	mm / ±1* ±1,5**	-	10 ÷ 50
Packing	Rolls	-	50 ÷ 1500 m
In accordance with rules	CEI EN 61067-3-1	CEI IEC 1067-1 1067-2 1067-3-1

Particular requests can be forwarded to Guarniflon^® technical staff.
* Until height 25 mm
** Over height 25 mm
